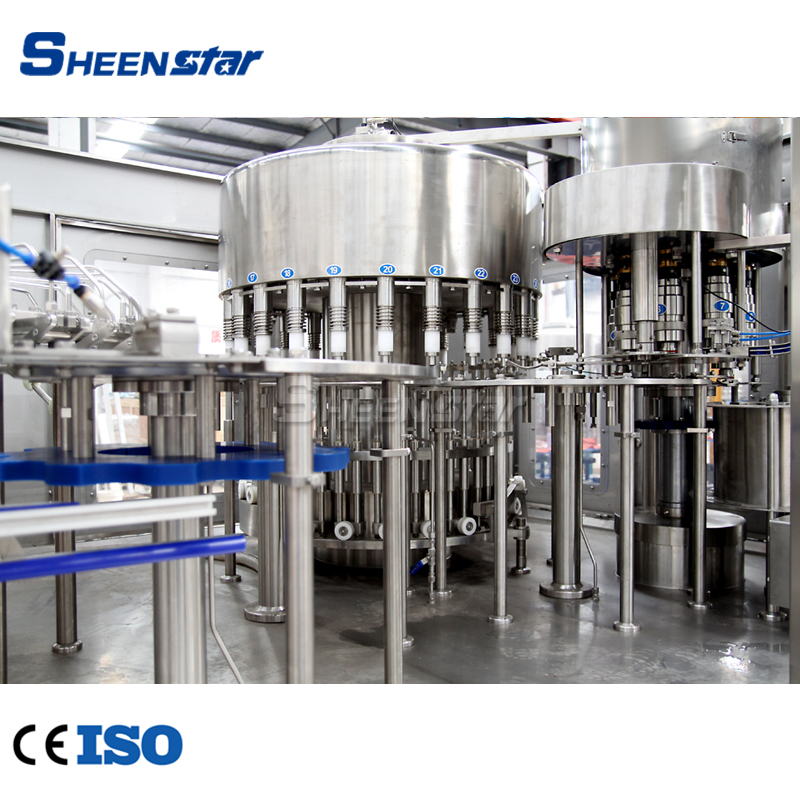

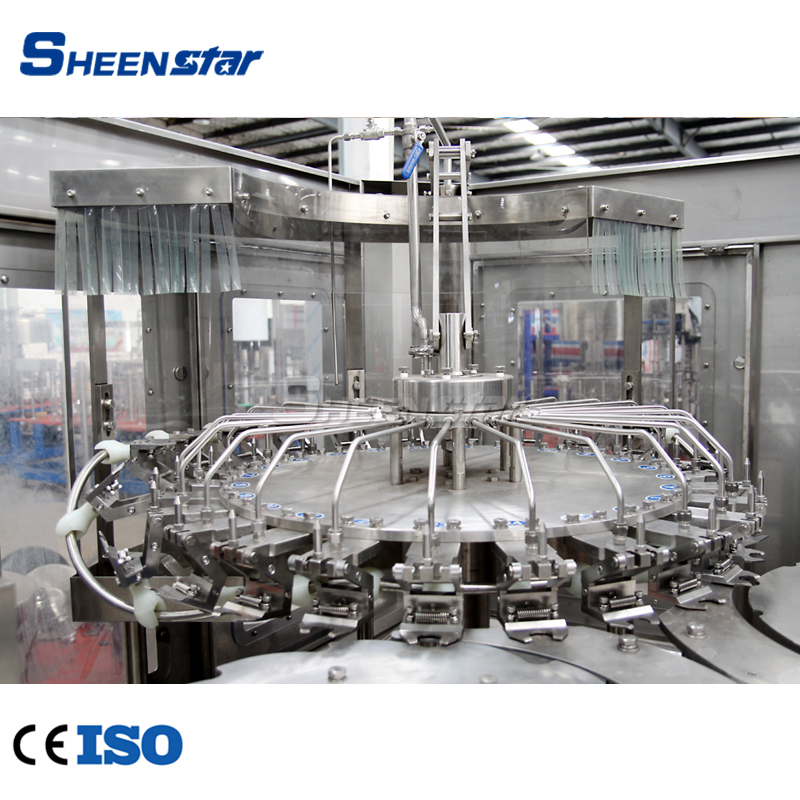

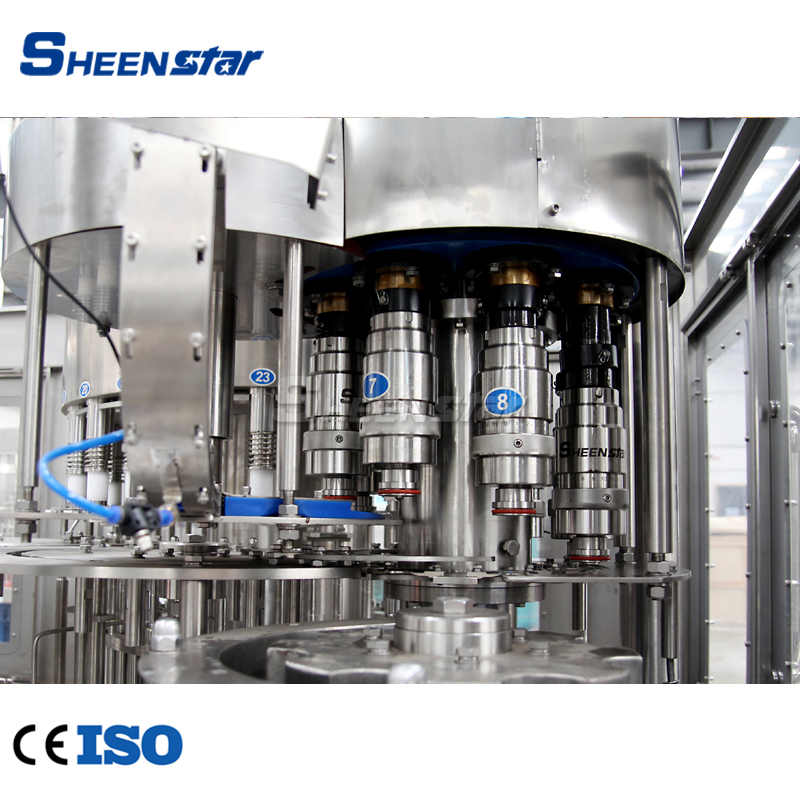

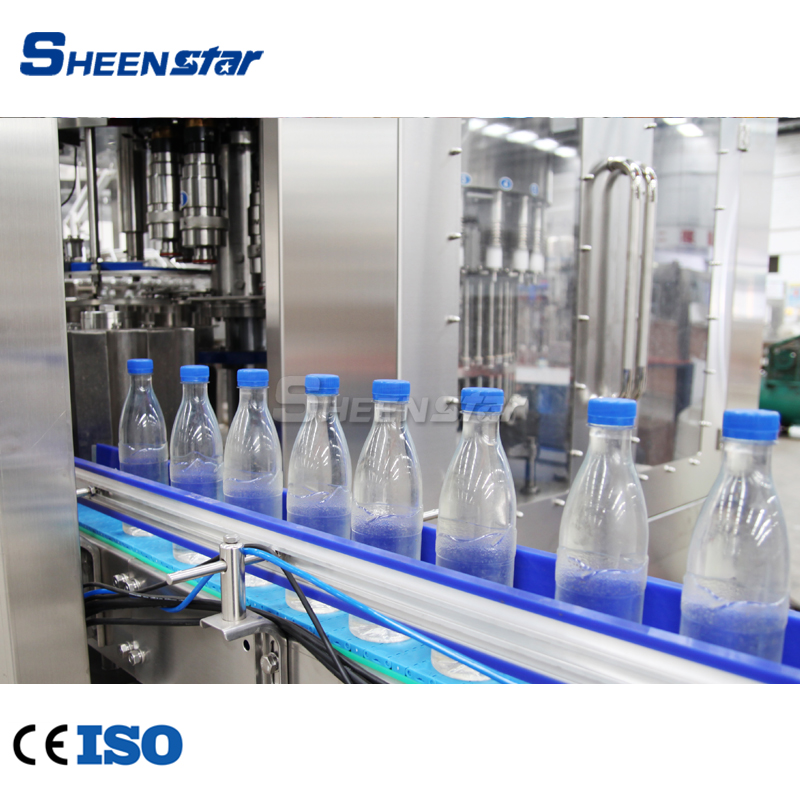

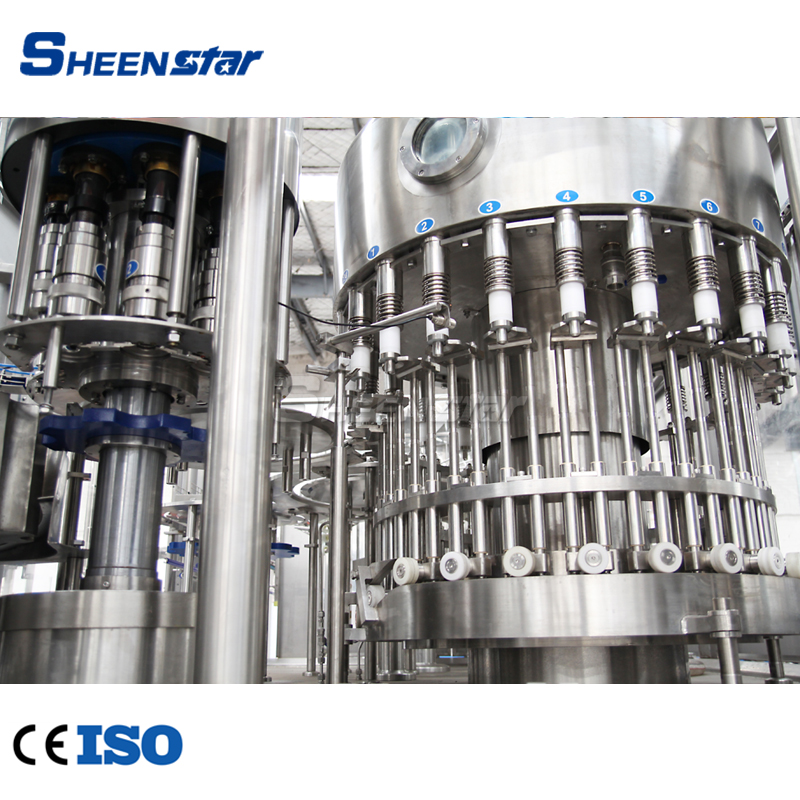

The machine is used in filling pure water, mineral water and purified water in bottles made of plastic.
The three functions of bottle wash, fill and seal are composed in one body of the machine.
The whole process is automatic.
The handle of the machine can be freely and conveniently turned to adjust the machine to fill
various types of bottles.
The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery
of the same specifications.
The advanced OMRON programmed controller (PLC) is adopted to control the machine to run
automatically while a transducer is used in the bottle -intering chains to adjust speeds and
coordinated with the transducer of the main machine to make the operations of moving bottle
forward steadily and reliably.
| Model | XGF14-12-5 | XGF18-18-6 | XGF24-24-8 | XGF32-32-8 | XGF40-40-10 | XGF50-50-12 |
| Washing Heads | 14 | 18 | 24 | 32 | 40 | 50 |
| Filling Heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping Heads | 5 | 6 | 8 | 8 | 10 | 12 |
| Capacity（b/h） | 5000 | 10000 | 12000 | 15000 | 20000 | 26000 |
| Power(kw) | 1.5 | 2.2 | 3 | 3 | 7.5 | 9 |
| Dimensions(mm) | 2200*1550*2450 | 2910*2150*2450 | 2850*2200*2450 | 3430*2630*2450 | 4300*2930*2450 | 5000*3840*2450 |
| Weight | 2000 | 2500 | 4200 | 6000 | 7000 | 9000 |
| Voltage | 380V | |||||
| Suitable Bottle Shape | circular,square | |||||
| Suitable caps | plastic screw cap | |||||
| Bottle Diameter(mm) | 50-100 | |||||
| Bottle Height(mm) | 150-310 | |||||
| Compressed Air Pressure(Mpa) | 0.3-0.7 | |||||
| Washing Medium | aseptic water | |||||
| Washing pressure(MPA) | 0.2-0.25 | |||||
